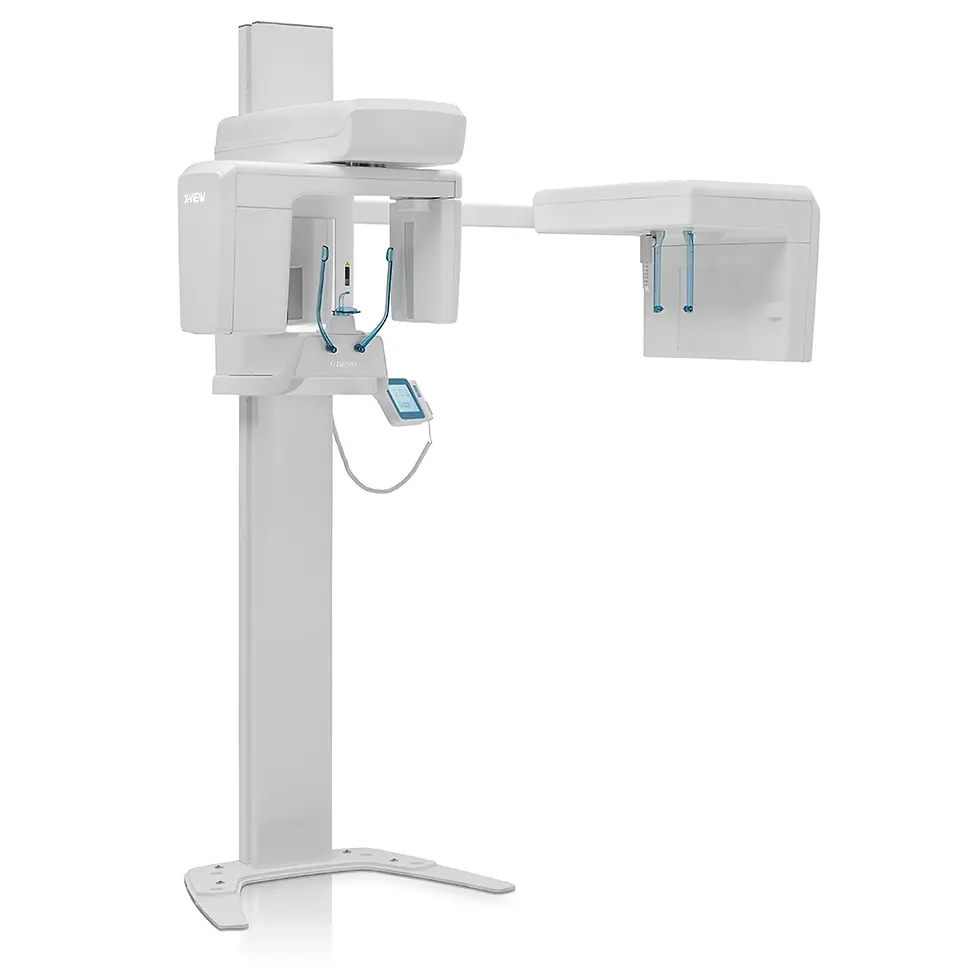

X-VIEW 2D PAN/3D

The X-VIEW Series by Trident represents the next generation of dental imaging technology, delivering exceptional clarity, speed, and diagnostic versatility in a compact and ergonomic design. Whether you're looking for advanced panoramic capabilities or a complete 3-in-1 CBCT solution, X-VIEW 2D PAN and X-VIEW 3D provide tailored tools for every clinical need.



X-VIEW 2D PAN

A streamlined digital panoramic system that combines high-resolution imaging with user-friendly operation. Ideal for general dentists, orthodontists, and periodontists, it features:

• CMOS digital sensor for fast, sharp image capture

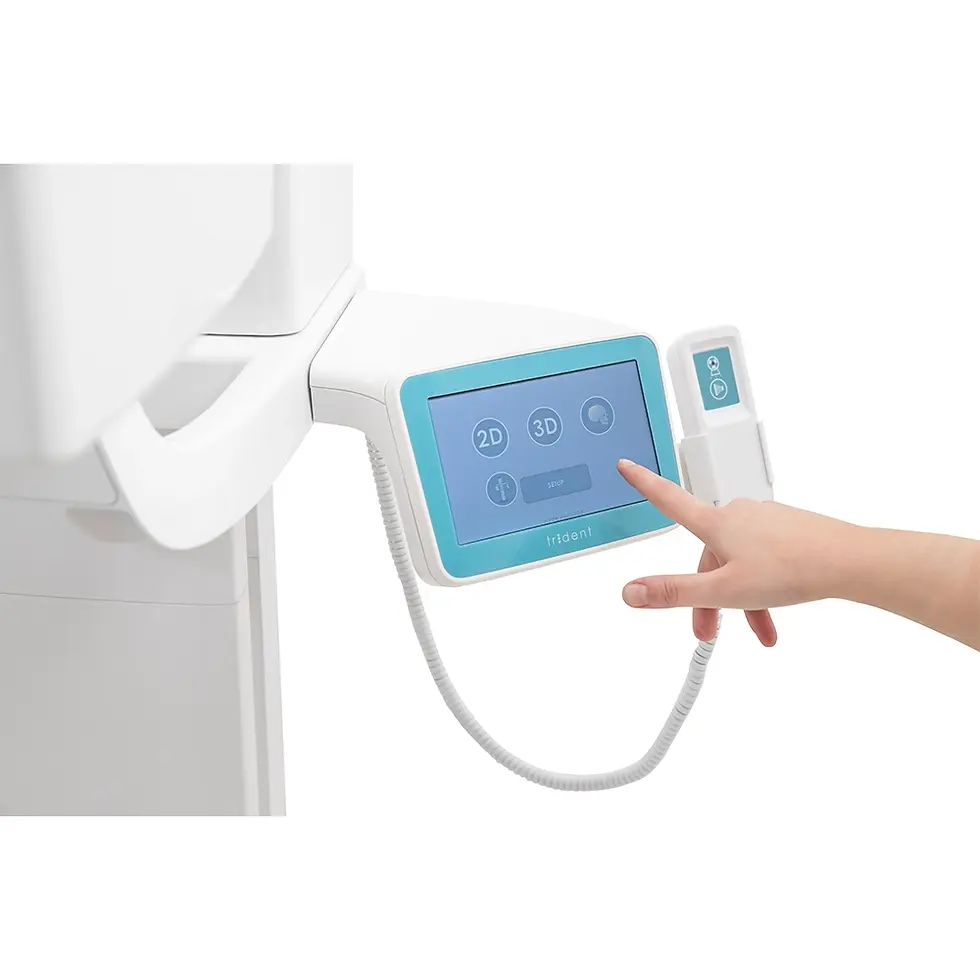

• 7” color touchscreen for easy navigation and preview

• Motorized column and laser-guided positioning for precise alignment

• Multiple acquisition modes including standard PAN, hemi-pan, bitewing, TMJ (open/closed), and sinus views

• Optional upgrade to include Cephalometric module with single-shot DR imaging

• Integrated Deep-View software for image enhancement and export (DICOM, JPG, PNG, BMP)



X-VIEW 3D

The X-VIEW 3D is a powerful CBCT imaging system with full 3-in-1 functionality – capturing 3D volumetric scans, 2D panoramic images, and optional cephalometric X-rays in one device. Built for advanced diagnostics, implant planning, and surgical accuracy, it is perfect for multi-specialty clinics and digital workflows.



Key Features:

• Multiple FOVs (Fields of View): From 5×5 cm to 11×14 cm, customizable based on clinical needs – from single-tooth to full-jaw scans

• High-resolution volumetric imaging: Voxel sizes down to 50 µm, ideal for endodontics, implantology, and surgery

• IGZO-based flat panel detector for 2D/3D + amorphous silicon panel for Ceph (optional)

• Fast scan times (as low as 2.4s) with pulsed DC X-ray emission to reduce radiation up to 57%

• Advanced reconstruction features:

  • Metal Artifact Reduction (MAR)

  • Patient Motion Correction

  • Advanced Reconstruction Techniques (ART) for enhanced image clarity

  • Geometric calibration software to correct mechanical deviations automatically

• Smart imaging software suite:

  • Deep-View for 2D/3D enhancement and DICOM integration

  • Xelis for full 3D navigation, implant simulation, bone density analysis, canal tracing, and cephalometric measurements

  • DFO module (optional) for orthodontic and cephalometric tracing

• Three resolution levels: HD, STD, and WLF for balancing image quality and file size

• Multifunction display panel (7") for quick setting previews

• Plug & Play PC integration with all calibration files pre-installed

• Multi-user and batch printing support, STL export, and automatic reporting tools



2D Capabilities (Included):

• Adult & child panoramic programs (15×30 cm and 13×30 cm)

• Hemi-pan, bitewing, TMJ (open/closed), sinus views

• 2D reconstructions from 3D scans possible



Optional Ceph Features:

• Lateral and AP cephalograms (30×25 cm)

• Carpus imaging

• Orthognathic surgery planning, malocclusion correction, and facial symmetry assessment



X-VIEW 3D is an all-in-one diagnostic powerhouse that gives you full control of your workflow — from simple panoramic scans to advanced 3D imaging and planning. With high precision, flexible imaging options, and reduced radiation, it is the ultimate choice for clinics that demand performance and safety without compromise.

X-VIEW 2D PAN – Specifications

Feature	Specification
Technology	High-frequency DC generator, 70 kVp – 8 mA
Sensor	CMOS sensor
Focal Spot	0.5 mm
Magnification Factor	1.2x
Panoramic Image Size	15 × 30 cm (adult), 13 × 30 cm (child)
Acquisition Modes	Standard PAN, Hemi-PAN, Bitewing, TMJ (open/closed), Sinus
Touchscreen	7” color LCD with image preview
Laser Alignment	Multi-point laser positioning system
Movement Control	Motorized vertical movement
Ceph Option	Optional DR sensor (one-shot imaging), 30 × 25 cm FOV
Software	Deep-View (image enhancement, export, filters)
Supported File Formats	DICOM, JPG, PNG, BMP
Export & Compatibility	DICOM integration, USB, Ethernet
Installation Types	Wall-mounted, with compact footprint



X-VIEW 3D – Specifications

Feature	Specification
Imaging Technology	CBCT, PAN, optional Cephalometric
Detector Type	IGZO flat panel detector (2D/3D), Amorphous silicon for Ceph (optional)
Voxel Sizes (3D)	50 µm / 100 µm / 150 µm
FOV Options (3D)	5×5, 8×5, 8×8, 10×8, 11×8, 11×14 cm
2D Panoramic Programs	Adult/Child, Bitewing, TMJ (open/closed), Sinus, Hemi-Pan
Ceph Imaging (Optional)	Lateral, AP, Carpus, Orthognathic analysis, 30×25 cm sensor
Scan Time	As low as 2.4 seconds (pulsed mode)
Radiation Reduction	Up to 57% lower with pulsed emission
Image Enhancements	MAR (Metal Artifact Reduction), Motion Correction, ART
Software Suite	Deep-View, Xelis (3D planning, implant, tracing, density), Optional DFO module
Touchscreen	7” multifunction color screen
Connectivity	USB, LAN, Plug & Play PC, STL export, DICOM compatible
Calibration Tools	Automatic geometric and mechanical deviation correction
Installation	Floor-mounted with stable and ergonomic arm system
